Eversolo Z10 izuzetan je uredjaj, kombinacija analognog pretpojacala, DAC pretvaraca i pojacala za slusalice najvisih perfomasi.
Precision Engineering, Built for Authentic Sound
The Eversolo DAC-Z10 is praised as “a next-gen flagship hi-fi DAC designed for uncompromising audiophiles.” From digital to analog, the DAC-Z10 lets music unfold in its purest form A DAC that reveals the authentic character and finest details of sound.
It starts with a dual-mono AKM flagship DAC configuration, working alongside an oven-controlled crystal oscillator (OCXO) combined with a femtosecond-grade PLL system to deliver an “ultra-stable, low-jitter clock architecture.”
Meanwhile, the device’s IIS input supports PCM 32-bit/768kHz and DSD512 Native decoding. Also onboard is a Qualcomm QCC5125 chip that enables near-wired sound quality over wireless transmission, while “three custom-designed toroidal transformers” provide dedicated power pathways that, according to Eversolo, minimize crosstalk and electromagnetic noise.

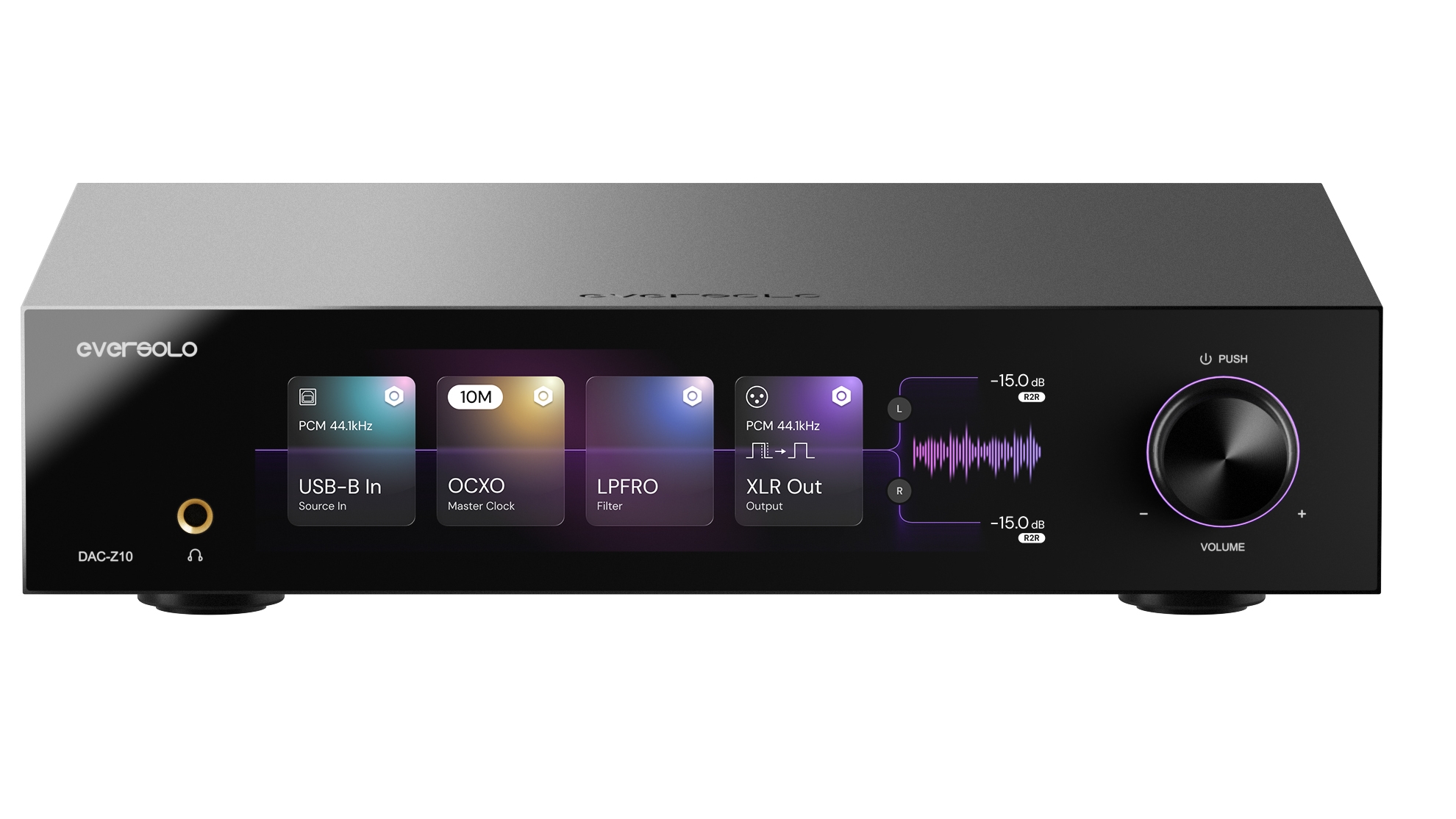

Intuitive Signal Path Display
On this interface, the path of sound is illuminated. Input sources, master clock, filter characteristics, XLR/RCA outputs, and the heartbeat of the R2R left/right channel volume control—all unfold clearly, revealing the full story of your music.
Dual Decoding Modules
Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.
Native Support
DSD 512
PCM 768kHz/32Bit
Vorige
Volgende
Volume Con
R2R Volume Control
The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.
EXTERNAL 10MHZ CLOCK INPUT
External Clock Support
Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.
FPGA OPTIMIZED SIGNAL PROCESSING
FPGA Redefined
The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.
HIGH-RES USB AUDIO
Multi-Core USB Audio Processor
The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.
HIGH PRECISION OCXO
Eversolo Precision Core™, Accurate Clock System
OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology
External 10 MHz & 25 MHz High-Precision Clock Support | FPGA Clock Reconstruction
STOP GROUND NOISE
Grounding Post
The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.
ISOLATED I2S INPUT
8-Mode IIS Digital Audio Input
Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.
HDMI ARC INPUT
HDMI ARC Integration
The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.
HEADPHONE OUTPUT
6.35mm Headphone Amplifier Module
The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.High Gain OutputHigh Gain Output, 1 Watt @ 16 Ohm
BLUETOOTH INTEGRATED
High Quality Bluetooth Module
The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.
TECHNICAL SPECIFICATIONS
Generic Parameters
Model Eversolo DAC-Z10
Display 8.8″ IPS
Chassis Material Aluminium alloy
Main Processor DCP8568
DAC Left Channel: AK4191+AK4499
Right Channel: AK4191+AK4499
Audio Processor Multi-core USB audio processor
OPA Chip OPA1612
Power Triple ultra-low noise linear power supplies

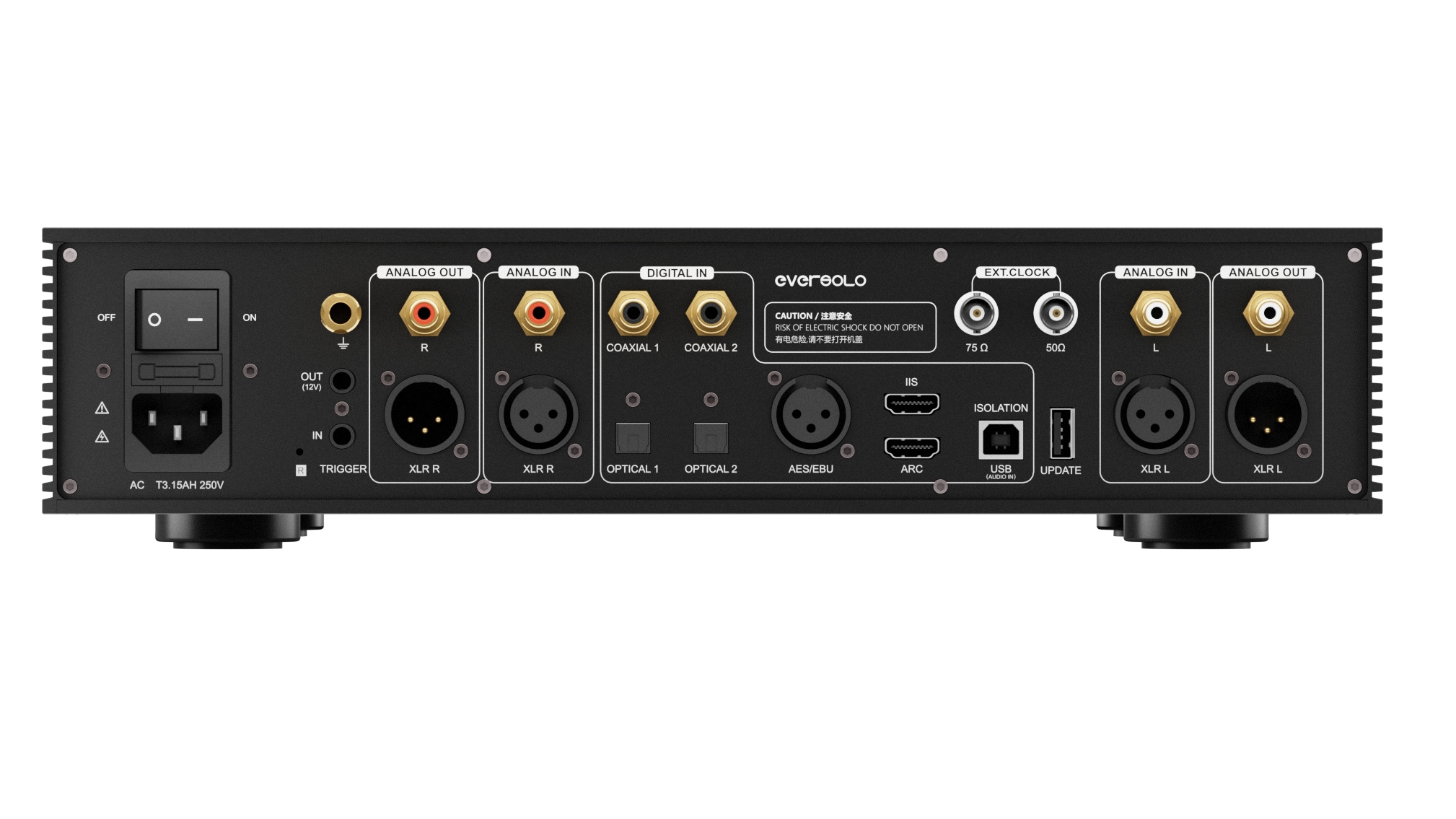

Audio Inputs and Outputs
Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input Up to Stereo PCM 192KHz/24Bit
Analog Audio Inputs XLR (Balanced), RCA
Analog Audio Outputs
Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended
External Clock Input Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Headphone Output
Recommended Headphone Impedance 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)
Audio Characteristics
XLR Output Audio Characteristics Output Level (Vrms): 5Vrms @ 0dBFS
THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
Noise @ No-wt: <1.2uVrms
SNR @ A-wt: 130dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -130dB
DNR @ A-wt: 130dB
RCA Output Audio Characteristics
Output Level (Vrms): 2.5Vrms @ 0dBFS
THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
Noise @ No-wt: <1.5uVrms
SNR @ A-wt: 128dB
Frequency Response: 20Hz–20kHz (±0.1dB)
Crosstalk: -123dB
DNR @ A-wt: 128dB
Headphone Audio Characteristics (Low Gain Mode)
Output Level (Vrms): 4Vrms @ 0dBFS
THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 124dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 124dB
Headphone Audio Characteristics (Mid Gain Mode)
Output Level (Vrms): 5.6Vrms @ 0dBFS
THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 126dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 126dB
Headphone Audio Characteristics (High Gain Mode)
Output Level (Vrms): 7Vrms @ 0dBFS
THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
Noise @ No-wt: <2.5uVrms
SNR @ A-wt: 127dB
Frequency Response: 20Hz–20kHz (±0.1dB)
DNR @ A-wt: 127dB
Other Information
Power Supply AC 100~240V 50/60Hz
USB Port USB2.0*1（only for firmware upgrade）
Control Methods Touchscreen control, remote control, mobile App control
Rated Power Consumption 32W
Dimensions 265mm (L) × 310mm (W) × 78mm (H)
Packing List 265mm (L) × 310mm (W) × 78mm (H)
